Processor system

Onboard Intel Alder Lake-U/-P series processor

EFI BIOS

Memory

2* DDR 5 SO-DIMM , total maximum 64 GB

storage

1 *M.2 M-Key 2280 (NVMe PCIe 3.0 x4/SATA3.0 protocol)

1 * SATA 3.0 interface , 2Pin 5V power supply

show

2* HDMI 2.0 interface , support 4096 x 2160@60H z

2*Type-C interface , support DP 7680 x 4320 @60H z and USB3.2 Gen2

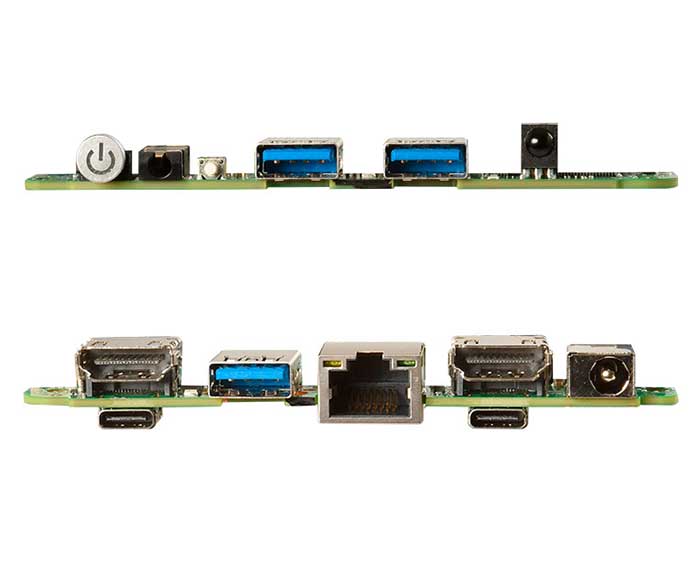

Board edge I/O interface

Power button, 2-in-1 audio jack, reset button, 2*USB3.2 Gen2

DC JACK, 2*HDMI, 2*Type-C, 1*LAN

Single and dual network optional: single network, 1*USB3.2 on the rear I/O; dual network, 1*USB3.2 on the rear I/O

Expansion interface/function

External TPM2.0 is optional, not available by default. The default is CPU built-in TPM2.0

1 * M.2 E-Key ( PCIe+USB2.0 protocol, WIFI/BT module)

1*RS232 pin header, spacing 2.0mm

1*USB2.0 pin header, 2x5Pin, spacing 2.0mm

1*4Pin PWM CPU FAN

power supply

DC 12-19 V, 120W or more

Work Environment

Working temperature: -20℃ ~ +60℃; working humidity: 5% ~ 90%

Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90%

Operating System Support

Windows 10, Windows 11, Linux

size

1 00 x1 00 mm

net weight

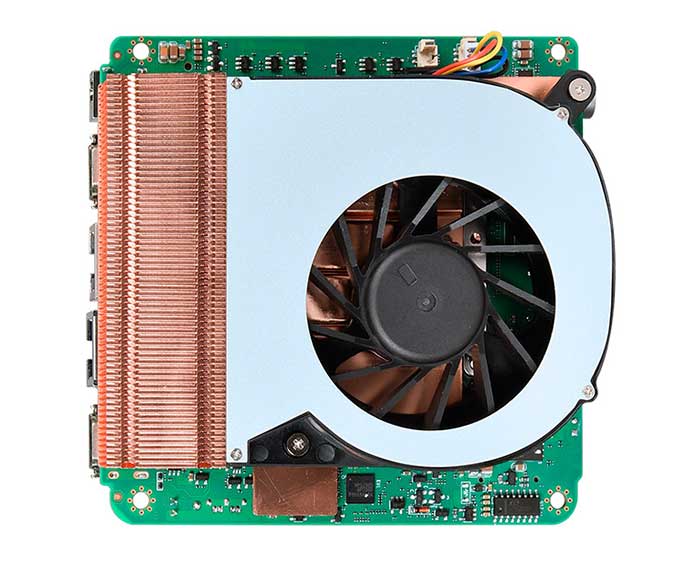

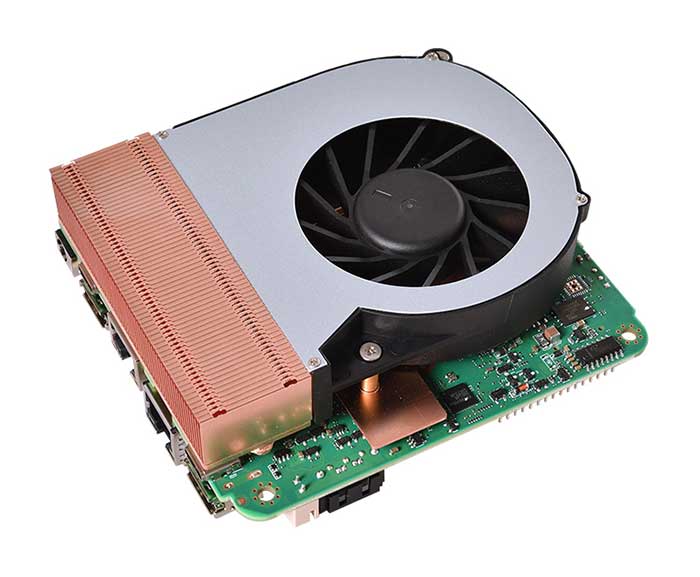

Without radiator, about 120 g ; with radiator, about 220 g
